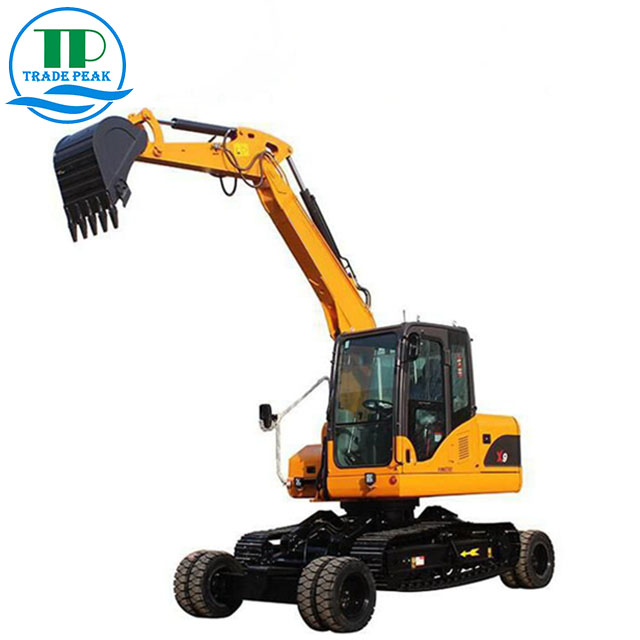

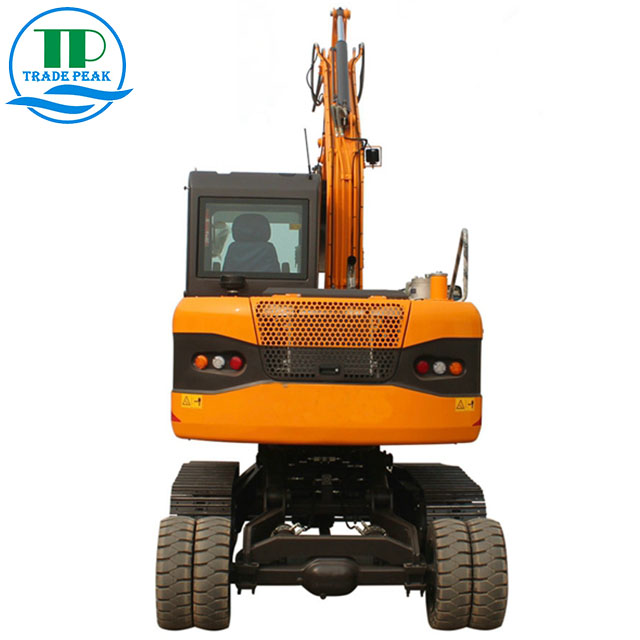

Hot Sales QTP X9 Wheel&crawler Excavator
$40,000.00
- Wheel-Crawler Excavator X9, New design, patent products.
- running on the wheel, working on the crawler, wheel and crawler is easy to change each other.
- on city transport, no need the truck again.
- 9ton, Imported Yanmar engine, powerful and reliable performance GERMANY REXROTH pump, USA EATON swing motor, traveling motor, South Korea SUNJIN valve/ Joystick, A/C cab for choose, Radio, USB.
Brand: TRADE PEAK
Model: QTP X9
Operating Weight: 8770KGS
Bucket capacity: 0.3m3
Engine Type: Yanmar4TNV94L-BNBKC
Engine power/rpm: 33.7 kw/2100 rpm
Max. torque: 193.2-210.6 N.m/126±100rpm
Wheel travelling speed: 25 km/h
Track travelling speed : 2.3km/h
Swing speed: 9rpm
Max. grade ability: 30°
Displacement: 132 L/min
Capacity of hydraulic tank: 175 L
Capacity of fuel tank: 150 L
Engine oil capacity: 12 L
Overall dimension: 6570x2120x2980
Counter weight turning radius: 1836
Engine hood height: 2104
Counter weight ground clearance: 1120
Upper structure width: 2000
Cabin height (wheels up): 2982
Tire width: 2120
Ground clearance: 270
Wheels up wheel gauge: 3400
Distance of swing center to rear wheel (wheels up): 1682
Wheels down wheel gauge: 3560
Distance of swing center to rear wheel (wheels down): 1767
Rear wheel ground clearance(wheel up): 300
Tracks ground clearance(wheel down): 330
Total height (wheels down): 3190
Track wheel track: 2050
Track width: 400
Track outer width: 2160
Working device: Boom 3.6m+Arm 2m
Max. digging radius: 6880
Max. digging radius (on ground): 6735
Max. digging depth: 3772
Max. digging depth: 7130
Max. dumping height: 5220
Min. turning radius: 2617
Max. vertical digging depth: 3425
Bucket digging force (KN): 56
Bucket arm digging force (KN): 36
